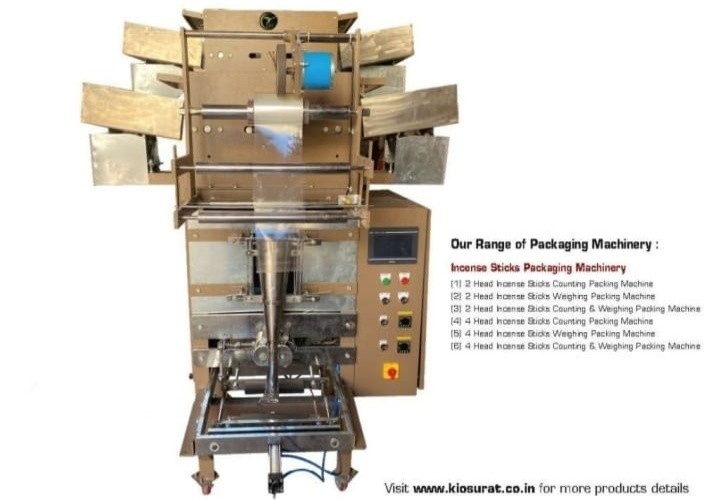

4 Head Fully Automatic Incense Sticks Counting & Packing Machine

Product Description

BRAND: KIO

MODEL NAME : 4H AGS CPM

MODEL NO : KIO4HAGMCPM

MACHINE SPEED :5 TO 50 POUCH/ MINUTE

(DEPENDS ON SIZE & QTY)

PRODUCTION CAPACITY:2400 TO 24000 POUCH / 8 HOURS.

REQUIRED POWER :6 HP SINGLE PHASE.(3 HP COMPRESSOR)

LENGTH OF INCENSE STICKS :8 TO 12

DIAMETER OF INCENSE STICKS:2.8 TO 3.5MM.

(AS PER CUSTOMER REQUIREMENT)

ROLL:80MM TO 250MM BOPP HEAT SEALABLE(22 TO 50 MICRON)

CENTER SEALING OR SIDE SEALING AS PER REQUIREMENTS.

1 SUITE INSTALLED AND 2 SUITE FREE WITH MACHINE AS PER REQUIREMENT

4 HEAD DESIGN FOR INCENSE STICKS COUNTING

PLC BASED PROGRAMING WITH 7 HMI

AUTOMATIC & MANUAL BOTH OPERATING SYSTEM

TEMPERATURE INDICATION DISPLAY FOR CUTTING AND SEALING TEMPERATURE

HEAVY RIGID STRUCTURE

EASY OPERATING SYSTEM FOR MACHINE
